Standard Range
0.5 T, 1T, 2T, 3T, 4T, 5T, 6T, 7T, 7.5T, 10T, 12.5T, 15T, 20T, 25T, 30T, 40T

(Single /double GirderRailmounted / underslung)

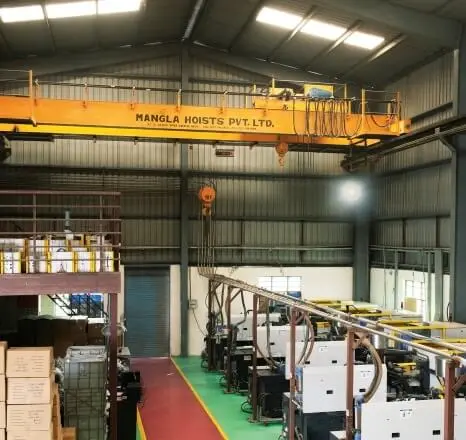

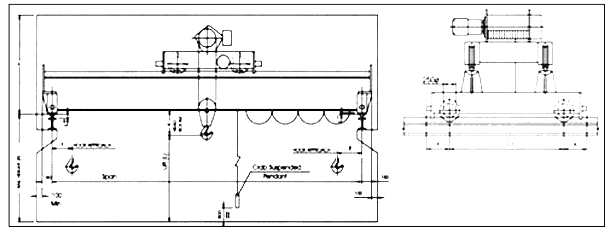

Single Girder EOT Cranes (SG-EOT)

FIG 1: Pull - Push Trolley (PT)
Capacity	L.T. Motor HP/rpm	L.T. Speed (M/min	Span'S' (Mts)	Approx. Static Wheel Load (KG)	Approx. Crane Weight (KG)	H (min)	C	C:C	B	Applicable for all spans
										K	EI	EII	Es	FI	FII	Fs
1T	2x0.25/1000	27	3	800	820	580	205	1200	30/32	For model : (WRH-NO)(2 Fall)
			4	830	910	630				730	690	750	820	690	750	820
			5	840	950
			6	860	1090	680
			7	890	1220			1600
			8	910	1280			2000		For model : NP 101 (WRH-I) (2 Fall)
			9	960	1480	690
			10	990	1640	740		2400		1170	895	995	1130	590	690	825
			11	1040	1810
			12	1120	2120		35
2T	2x0.25/1000	27	3	1380	1010	630	205	1200	30/32	For model : NP 102 (WRH-I) (4 Fall)
			4	1400	1100	680				1110	895	995	1130	590	690	825
			5	1430	1190	730
			6	1440	1280	680		1600
			7	1510	1510	740
			8	1530	1600					For model : NP 201 (WRH-II) (2 Fall)
			9	1600	1890	740	35	2000
			10	1620	2000					1370	935	1020	1155	625	710	845
			11	1670	2170			2400
			12	1700	2270
3T	2x0.25/1000	27	3	1940	1140	795	205	1200	30/32	For model : HW2 (2 Fall)
			4	1960	1230	845				1150	1200	1260	1350	830	890	960
			5	1980	1310	795
			6	2020	1500	855
			7	2080	1680	685		1600
			8	2120	1840		35			For model : NP 202 (WRH-II) (4 Fall)
			9	2150	1990			2000
			10	2170	2100	835				1345	935	1020	1155	625	710	845
			11	2300	2550			2400
			12	2330	2690
5T	2x0.75/1000	28	3	3190	1830	795	320	1200	30/32	For model : HW2 (4 Fall)
			4	3200	1900					1150	1200	1260	1350	830	890	960
			5	3240	2060	855
			6	3300	2280	685	50
			7	3320	2380			1600
			8	3370	2590					For model : NP 202 (WRH-II) (4 Fall)
			9	3450	2900	735		2000
			10	3520	3190					1345	935	1020	1155	625	710	845
			11	3640	3640	835		2400
			12	3680	3800
7.5T	1/1500	28	3	4530	2130	795	320	2000	40/42	For model : HW3 (4 Fall)
			4	4590	2300	855				1333	1400	1450	1520	980	1040	1100
			5	4630	2500	685	50
			6	4650	2610
			7	4760	3030
			8	4830	3310	735
			9	4970	3890	835
			10	5030	4100
			11	5090	4370			2400
			12	5190	4750
10T	1.5/1500	28	3	5770	2230	725	50	2000	50/52	For model : HW3 (4 Fall)
			4	5820	2440	855	320			1333	1400	1450	1520	980	1040	1100
			5	5880	2500	685	50
			6	5930	2810
			7	6040	3140	735
			8	6170	3670	835
			9	6220	3890
			10	6310	4250
			11	6450	4780	1005`		2400
			12	6510	5030

Description		Lifts Corresponding to Models (in mtrs)
Hook Approach		WRHN, NO		WRH - I, II,. HW - 2,3
Hook Approach		N	NO	NP101	NP201	NP301	NP102	NP202	NP302	NP303
E1	E1	5.2	6	6	6.6	10.5	3	3.3	5.25	5.25
E11	E11	8.2	9	12	11.4	14	6	5.7	7	7
Es	Es	11.2	12	20	19.2	18	10	9.6	9	9

FIG 1: Pull - Push Trolley (PT)
Capacity	Span'S' (Mts)	Approx. Static Wheel Load (KG)	Approx. Crane Weight (KG)	H (min)	B	C:C	A	K	E	F	C
3T	10	2860	4410	1410	30/32	2400	230	100	800	800	50
	11	2910	4640
	12	2970	4870
	13	3140	5550			3000
	14	3420	6650
	15	3590	7360	1460
5T	10	3960	4610	1410	30/32	2400	230	100	800	800	50
	11	4090	5160
	12	4240	5740	1460
	13	4520	6870			3000
	14	4880	8320	1560
	15	4990	8730
7.5T	10	5450	5370	1600	40/42	2400	230	180	800	800	50
	11	5520	5650
	12	5830	6890	1700				100
	13	6130	8100			3000
	14	6230	8520
	15	6340	8930
7.5T	10	6700	5400	1600	50/52	2400	230	180	925	925	50
	11	6990	6530	1700
	12	7080	6890					100
	13	7730	3100			3000
	14	7580	8920
	15	7820	9860

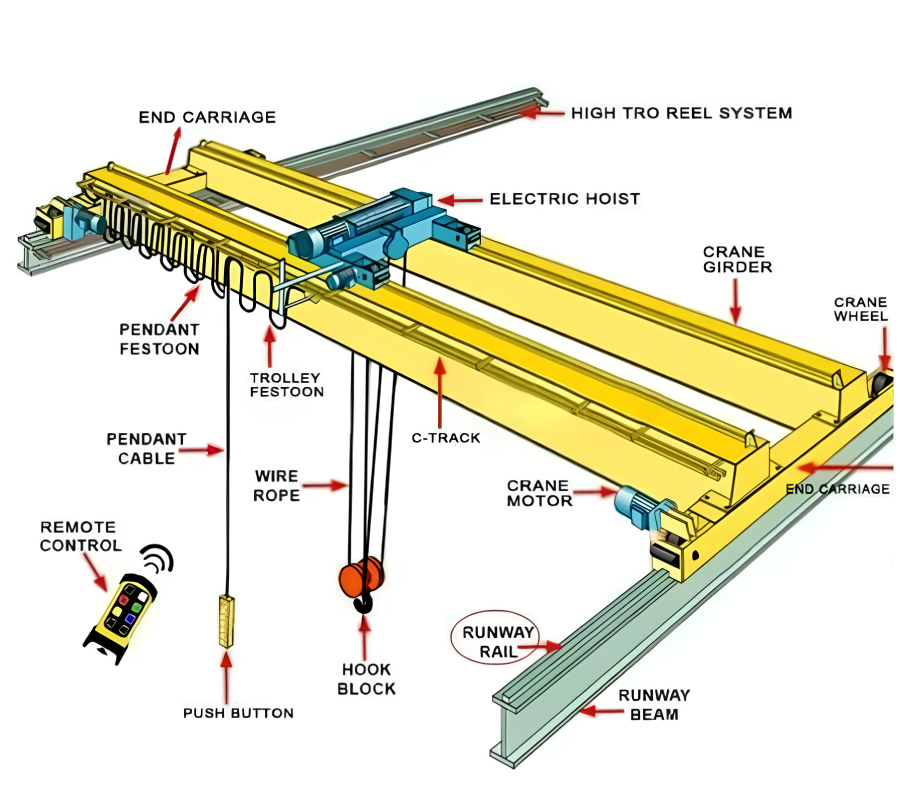

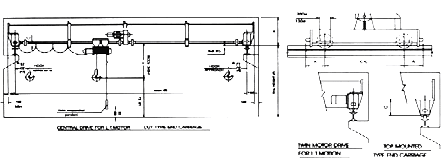

L .T. Drive
Description	Driver Type	Speed (MPM)	Motor: HP/RPM	Nos
3Tupto 14mts & 5Tx10mts Span	Central	28	1/1500	One
3Tx15mts & 5Tx11 to 15mts Span	Central	28	1.5/1500	One
7.5Tupto 12mts Span	Central	28	1.5/1500	One
7.5T 13mts to 15mts Sapn & 10T	Central	28	2/1500	One

C .T. Drive
Description	Driver Type	Speed (MPM)	Motor: HP/RPM	Nos
3T to 5T	Single	18	0.5/1000	One
7.5T to 10T	Twin	18	0.75/1000	Two

Note:-
1) Crane weight and wheel loads are approx. Values given to evaluate size of supporting structure.
2) Pendent push button is suspended from Hoist / crab.
3) Hook approach: a) Hook position is assumed at center of rope drum
b) Dimensions given are without consideration of DSL and its location
4) A. C. Disc brakes are provided for all motors
5) For SG - EOT Hoist with Electric Trolley will be supplied. For DG - EOT Hoist with crab assembly will be supplied.
6) Dimensions E & F will change for higher lifts.
7) For every fraction of spans above the specified span Dimensions of nearest higher span shall be applicable.
8) Cranes can be offered to suit higher size of runway rails on request.
9) Data tolerance + 10%
10) For SG - EOT Diameter of long travel wheel is 150 and 250 for cranes upto 3Tx12 mtrs. and 5Tx3 mtrs to 10T x 12 mtrs. respectively.
11) (L) Lift on crane = Height of Rail (R) + C - K

Specification:

'MANGLA 'cranes are manufactured from best quality material available . Workmanship is the high quality to the best standard
and finish with good engineering workshop practices and provided for all important components.

Cranes are designed and manufactured in accordance to IS 3177 \IS 807. Design of the crane structure as well s components/parts of the cranes shell confirm to class-II duty of the above code.

Bridge - It is as per IS 807/IS 3177/IS800.

These are standard I beams of M.S. rolled steel sections bolted to end carriages.

End Carriages - Box type in construction & fabricated from rolled section.

L.T. Wheels - Two nos. straight type, En8 forged steel ,double flanged LT wheels are provided in each of the two end carriages. These wheels are supported on steel axels. For under slung cranes S.G.I tapered type single flanged wheels are provided.

Pinion/Axle - Made from En9, heat treated carbon alloy steel.

Gears - They are as per IS 4460 , made from EN 8 and are supported on ball bearings.

Bearings - Heavy duty sealed ball bearing are used thus regular lubrication is eliminated . Two ball bearing are provided in each wheel for smooth running.

Hook- It is as per IS 8610 / IS 3815. Made from forged steel - C20, C30 or equivalent. It is collar or shark type in construction with safety latch.

Brakes- Brakes are heavy duty A. C. electromagnetic disc type. D. C. brakes can also be provided on request.

Control Panel - Mounted on hoist, sheet metal clad in totally enclosed construction with IP-55 Protection. It consists of control transformer, isolator, master contactor for mains ON/OFF; MCB's, contactors and overload relays for all motors.

Pendant- Consists of push buttons housed in dust proof housing and suspended from hoist. Wire rope is provided to prevent pull on pendant cables.

Safety- Electrical interlocking is provided to avoid accidental simultaneous motions of crane due to activation of multiple push button at the same time.

Hoist- MANGLA make Wire Rope Electric Hoist. Hoist is generally conforming to IS 3938. . Externally mounted TEFC , Squirrel cage ,S4 Crane duty induction motor is provided for hoisting . Wire rope is as per IS 2266 and hoist motor is as per IS 325 with class F' insulation and IP 55 protection . Hoist drum is of seamless steel pipe . For other details refer Wire Rope Hoist catalogue.

Testing- For all motion at 25% over load as per IS 3177.

Clients- Telco, Escorts, Modi cement Ltd., Maharashtra Electricity Board, ONGC, Bokaro steel plant, Eastern railway, Air Force academy, Indian Oil Corporation, Badarpur Thermal Power Project, Hindustan
Aeronautics Ltd., J.K. Tires Ltd.

Improvements- Our engineering department continuously works on design improvement and we reserve the right of affecting any change found necessary without notice.
