| Bridge | IS 807/IS 3177/IS800 |
| End Carriages | Box type |
| L.T. Wheels | Two nos. straight type |
| SWL Up To | 12.5T |
| Span Up To | 30 Meters |
| Long Travel (LT) Speed Up To | 40m/min |
| Cross Travel (CT) Speed Up To | 20m/min |
| Hoisting Speed Up To | 8m/min |
| Hoisting/ Travel Speed | Dual speed offered as standard. VFD (optional) |
| Pinion/Axle | Heat-treated carbon alloy steel |
| Hook | Forged steel - C20, C30 |
| Brakes | A. C. electromagnetic disc type |
| Control Panel | Hoist mounted IP-55 Protection |
| Pendant | Wire rope, suspended from a hoist |
| Safety | Electrical interlocking |
| Hoist | Wire Rope Electric Hoist |
| Testing | 25% overload as per IS 31 |
Mangla Goliath Cranes can be customized as per the client’s requirements
0.5 T, 1T, 2T, 3T, 4T, 5T, 6T, 7T, 7.5T, 10T, 12.5T, 15T, 20T, 25T, 30T, 40T

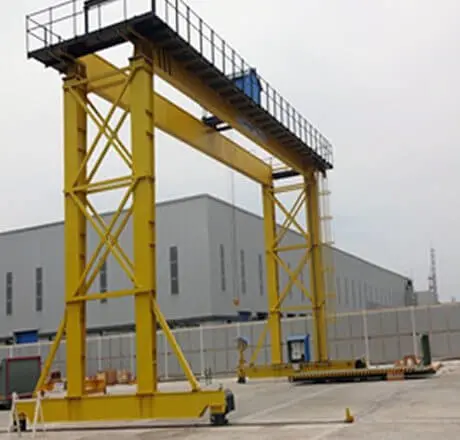

The goliath crane is a perfect fit for the industries which require heavy lifting, maneuvering loads, which are challenging to move around with other equipment. It finds a lot of applications in the shipping industry, automobile industry, steel plants, stone and granite industry, heavy machinery manufacturing industry, freight yards, yard goods, and bulk cargoes, etc. Mangla Hoist is the leading goliath crane manufacturers in India that produce specialty cranes for unique applications.

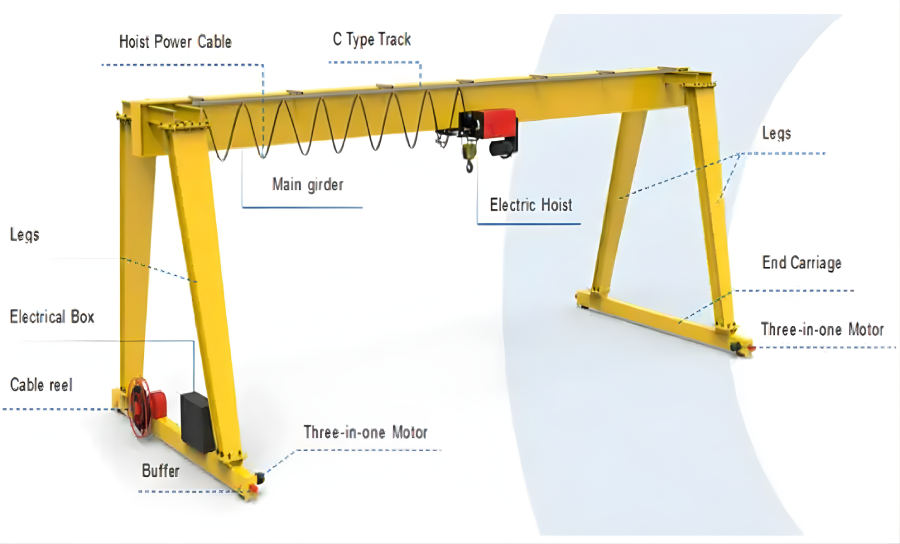

The all-metal structure and the frame, and slick design allows it to walk on the track of the ground. The ends of the beam have an outrigger cantilever beam. The crane has the characteristics of high site utilization rate, broad operating range, wide adaptability, and strong versatility and has wide application, especially in the port cargo yard.
With master and slave configurations, the crane is operated by a single operator from one control station. It reduces risk and improves safety and flexibility.
